华为VPN实例配置OA和OT隔离(含无线)

On 2022年5月28日2022年5月29日By 去哪儿

组网需求：

通过VPN实例，实现OA和OT的逻辑分区隔离，逻辑分区通过OSPF通讯。

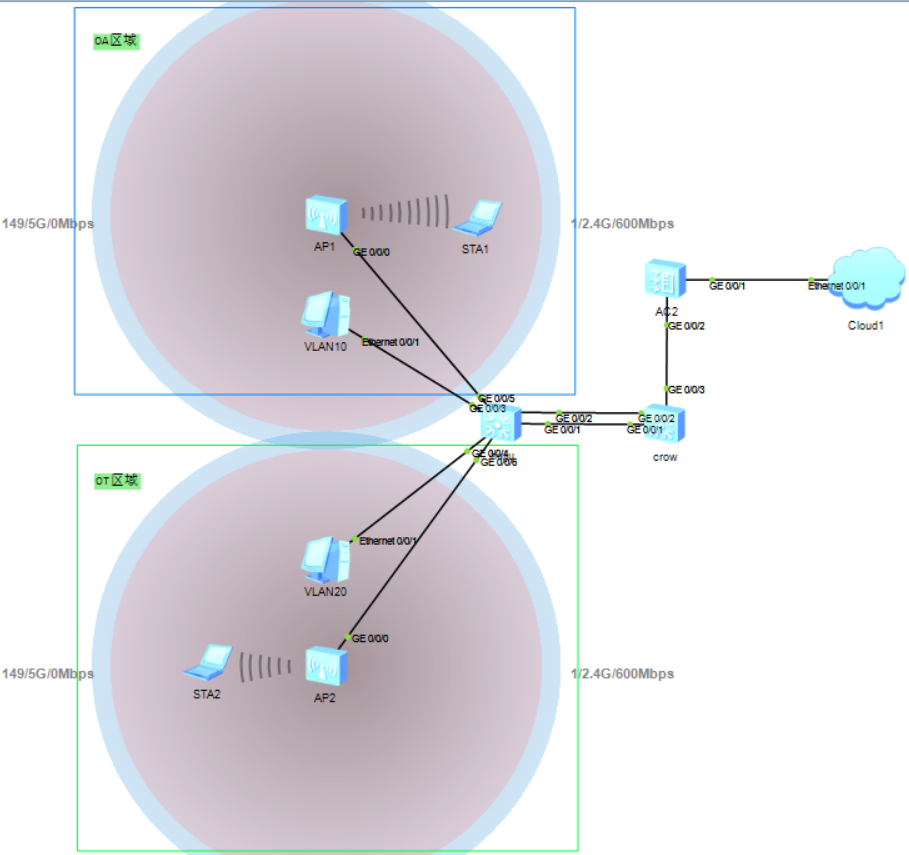

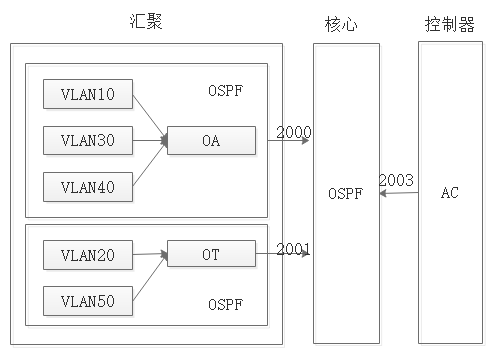

如下图所示，汇聚交换机划分两个VPN实例，OA和OT。OA实例分别应用到VLAN10、30、40、2000，其中VLAN30是作为所有AP设备的管理地址，VLAN40是无线用户地址，VLAN2000是作为和核心交换机的通讯主要接口。OT实例分别应用到VLAN20、50、2001，其中VLAN50是作为无线用户地址，VLAN2001是作为和核心交换机通讯的主要接口。核心交换机配置VLAN2000和2001对应汇聚的VPN实例。控制器配置2003，与核心通讯，实现无线AP管控。

实验目的

无论是有线还是无线，实现OA和OT逻辑分区，互访采用OSPF。默认所有的无线AP全放到OA的VLAN30统一管理，业务依然按照OA和OT区分

配置汇聚交换机

1、配置VLAN和VPN实例

vlan batch 10 20 30 40 50 2000 to 2001
ip vpn-instance OA
 ipv4-family
ip vpn-instance OT
 ipv4-family

2、配置IP地址和地址池，以及VPN实例应用

interface Vlanif10
 ip binding vpn-instance OA
 ip address 172.30.10.1 255.255.255.0
 dhcp select global
#
interface Vlanif30
 ip binding vpn-instance OA
 ip address 172.30.30.1 255.255.255.0
 dhcp select global
#
interface Vlanif40
 ip binding vpn-instance OA
 ip address 172.30.40.1 255.255.255.0
 dhcp select global
#
interface Vlanif2000
 ip binding vpn-instance OA
 ip address 172.30.1.1 255.255.255.0
#
interface Vlanif20
 ip binding vpn-instance OT
 ip address 172.30.20.1 255.255.255.0
 dhcp select global
#
interface Vlanif50
 ip binding vpn-instance OT
 ip address 172.30.50.1 255.255.255.0
 dhcp select global
#
interface Vlanif2001
 ip binding vpn-instance OT
 ip address 172.30.2.1 255.255.255.0
#
ip pool 10
 vpn-instance OA
 gateway-list 172.30.10.1
 network 172.30.10.0 mask 255.255.255.0
 option 43 ip-address 172.30.3.2
#
ip pool 30
 vpn-instance OA
 gateway-list 172.30.30.1
 network 172.30.30.0 mask 255.255.255.0
 option 43 sub-option 2 ip-address 172.30.3.2
#
ip pool 40
 vpn-instance OA
 gateway-list 172.30.40.1
 network 172.30.40.0 mask 255.255.255.0
#
ip pool 20
 vpn-instance OT
 gateway-list 172.30.20.1
 network 172.30.20.0 mask 255.255.255.0
#
ip pool 50
 vpn-instance OT
 gateway-list 172.30.50.1
 network 172.30.50.0 mask 255.255.255.0

3、配置接口

interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 2000
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 2001
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/4
 port link-type access
 port default vlan 20
#
interface GigabitEthernet0/0/5
 port link-type trunk
 port trunk pvid vlan 30
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/6
 port link-type trunk
 port trunk pvid vlan 30
 port trunk allow-pass vlan 2 to 4094

4、配置OSPF

ospf 1 vpn-instance OA
 area 0.0.0.0
  network 172.30.1.0 0.0.0.255
  network 172.30.10.0 0.0.0.255
  network 172.30.30.0 0.0.0.255
  network 172.30.40.0 0.0.0.255
#
ospf 2 vpn-instance OT
 area 0.0.0.0
  network 172.30.20.0 0.0.0.255
  network 172.30.2.0 0.0.0.255
  network 172.30.50.0 0.0.0.255

配置核心交换机

1、配置接口和地址

interface Vlanif2000
 ip address 172.30.1.2 255.255.255.0
#
interface Vlanif2001
 ip address 172.30.2.2 255.255.255.0
#
interface Vlanif2003
 ip address 172.30.3.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 2000
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 2001
 stp disable
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 2003

2、配置路由

ospf 1
 area 0.0.0.0
  network 172.30.1.0 0.0.0.255
  network 172.30.2.0 0.0.0.255
  network 172.30.3.0 0.0.0.255

配置无线AC控制器

1、配置接口和IP地址

interface Vlanif2003
 ip address 172.30.3.2 255.255.255.0
#
interface GigabitEthernet0/0/1
 port link-type access
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 2003

2、配置静态路由

ip route-static 0.0.0.0 0.0.0.0 172.30.3.1

3、配置AC

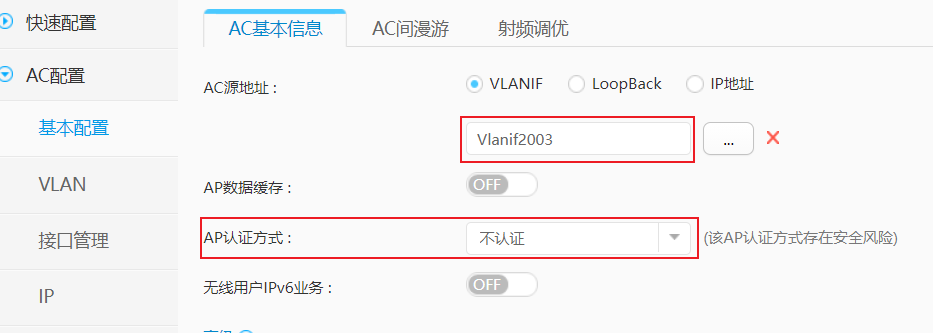

3.1、配置AC基本信息

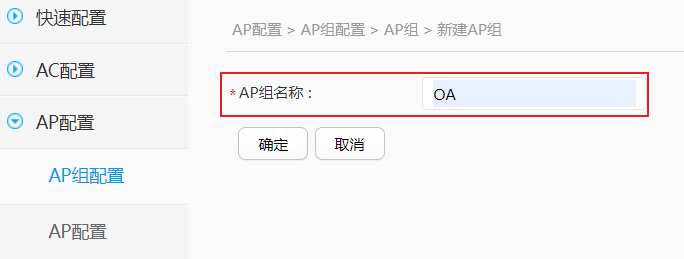

3.2、配置AP组，命名OA，用于管理所有的无线AP，纳入改组

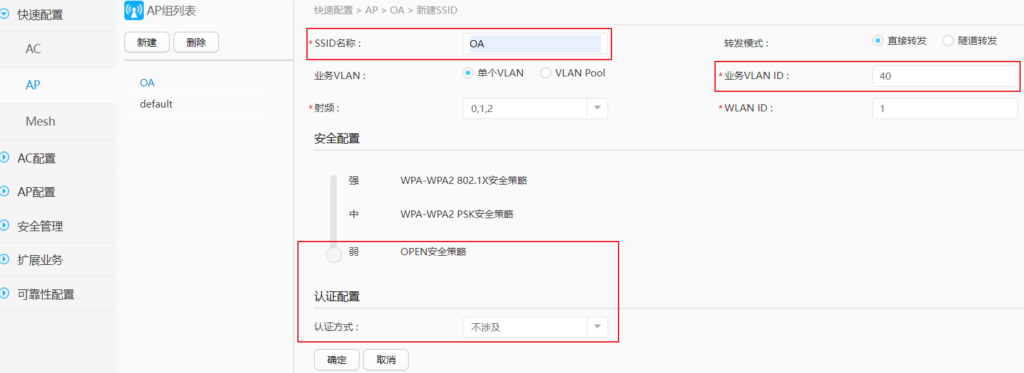

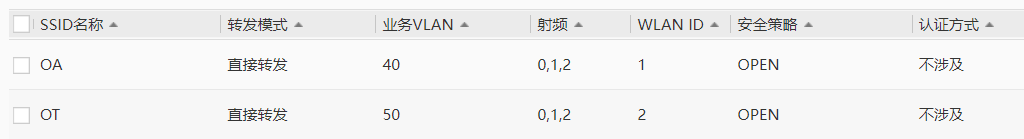

3.3、在OA组中配置SSID，命名OA和OT，采用免密认证

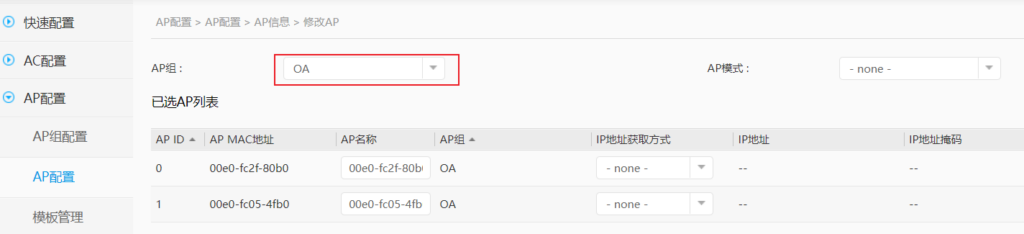

3.4、配置AP，分配到OA组
