FC交换机配置

On By 去哪儿

设备默认地址10.77.77.77

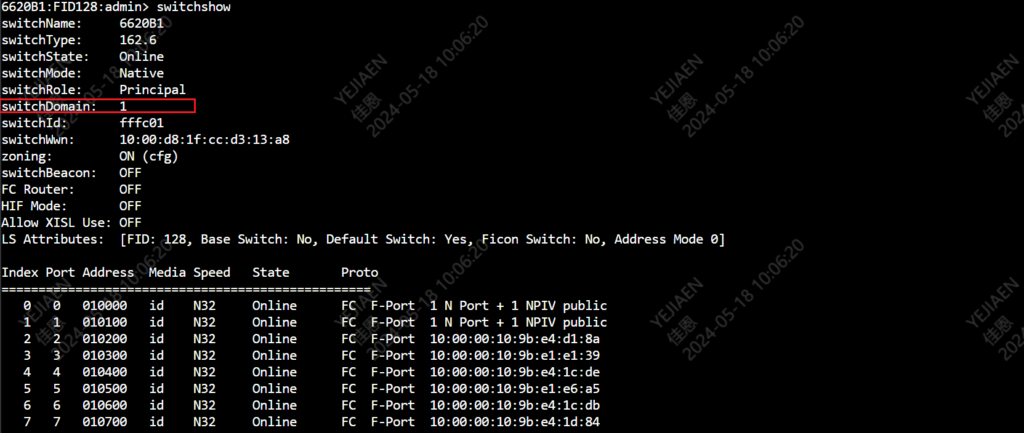

1、通过switchshow查看WWN信息，默认交换机switchdomain为1

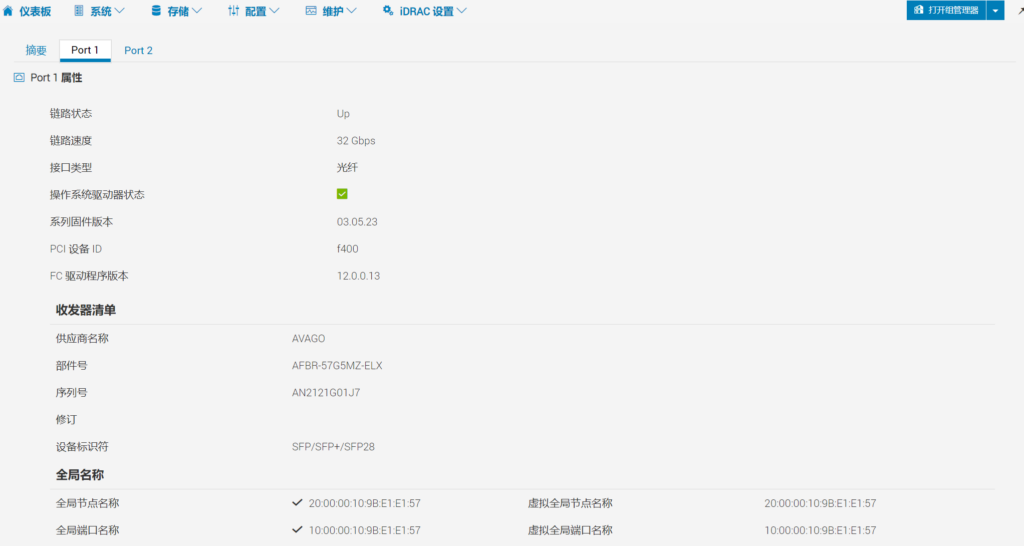

服务器设备上查看端口WWN信息

2、端口别名配置，alicreate [alias名称],[端口号或者wwn设备]

将switchdomain为1的2口加入alias_name别名

alicreate"alias_name","1,2"

也可用wwn信息加入aliname_01别名

alicreate "aliname_01","50:0b:34:20:02:fc:3c:0d;50:0b:34:20:02:fc:3a:0d"

3、创建zone，zonecreate [zone名称],[端口号或者wwn设备或别名]

方式1：

zonecreate "zonename","1,0;1,1;1,2"

方式2：

zonecreate "zonename","wwn1,wwn2"

方式3：

zonecreate "zonename","aliname1;aliname2;aliname3"

4、以下为完整配置案例

alicreate "PSA0","58:cc:f0:90:4d:20:0d:39"
alicreate "PSB0","58:cc:f0:98:4d:20:0d:39"
alicreate "ora1H1P1","10:00:00:10:9b:e4:d1:8a"
alicreate "ora2H1P1","10:00:00:10:9b:e1:e1:39"
zonecreate "PSA0_ora1H1P1","PSA0;ora1H1P1"
zonecreate "PSA0_ora2H1P1","PSA0;ora2H1P1"
zonecreate "PSB0_ora1H1P1","PSB0;ora1H1P1"
zonecreate "PSB0_ora2H1P1","PSB0;ora2H1P1"
cfgcreate "cfg","PSA0_ora1H1P1"
cfgadd "cfg","PSA0_ora2H1P1"
cfgadd "cfg","PSB0_ora1H1P1"
cfgadd "cfg","PSB0_ora2H1P1"


alicreate "PSA1","58:cc:f0:90:4d:21:0d:39"
alicreate "PSB1","58:cc:f0:98:4d:21:0d:39"
alicreate "ora1H7P1","10:00:00:10:9b:e1:e1:57"
alicreate "ora2H7P1","10:00:00:10:9b:e1:e1:27"
zonecreate "PSA1_ora1H7P1","PSA1;ora1H7P1"
zonecreate "PSA1_ora2H7P1","PSA1;ora2H7P1"
zonecreate "PSB1_ora1H7P1","PSB1;ora1H7P1"
zonecreate "PSB1_ora2H7P1","PSB1;ora2H7P1"
cfgcreate "cfg","PSA1_ora1H7P1"
cfgadd "cfg","PSA1_ora2H7P1"
cfgadd "cfg","PSB1_ora1H7P1"
cfgadd "cfg","PSB1_ora2H7P1"
